Appendix 7. Combined Calibration Scan Images and Source Lists

5. General Properties of the Combined Calibration Field Data

90547 Field

Tile Number (click for preview image) 90547

Central R.A. Dec (J2000; deg) 282.82780 -4.27488

Central glon glat (deg) 29.11141 -1.91959

Corners of source extraction area (R.A./Dec. pairs - J2000 deg) 282.757873 -3.775560, 282.757873 -4.773052,
282.897370 -3.775560, 282.897370 -4.773052

Number Northgoing Scans Combined (J/H/K_s) 270/270/279

Number Southgoing Scans Combined (J/H/K_s) 278/277/286

Number of Extractions (includes artifacts) 26982

Retrieve Images and Source List for this Field

Extracted Source Counts and Statistics

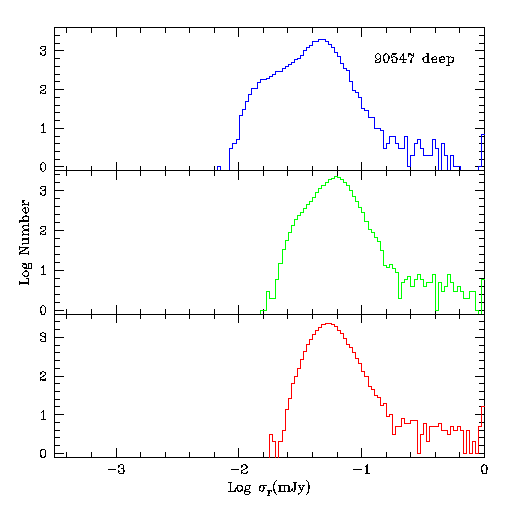

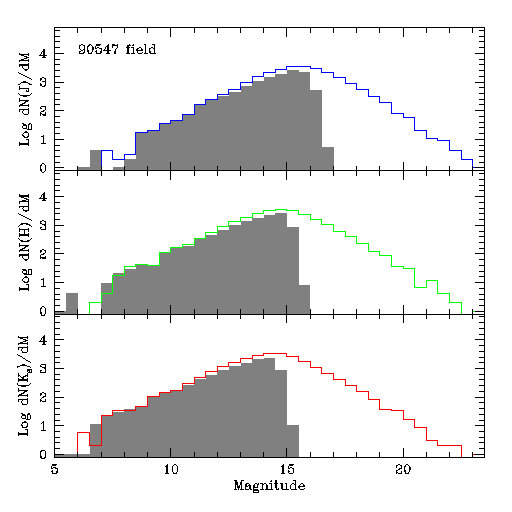

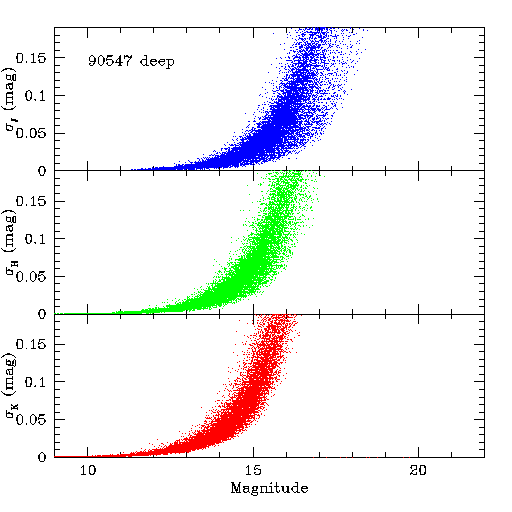

Figure 1 - Differential counts vs. magnitude for J (top), H (center), and K_s (bottom) bands. 2MASS All-Sky PSC source counts in the same approximate area are shown in the shaded region. Figure 2 - Photometric uncertainties plotted versus magnitude for J (top), H (center), and K_s (bottom) bands. Figure 3 - Log 1-sigma noise (mJy) histograms for J (top), H (center), and K_s (bottom) bands.

Photometric Properties

Figure 4 - Color-magnitude diagram. Figure 5 - Color-color diagram.

Extracted Source Photometric Residuals With Respect to the 2MASS PSC

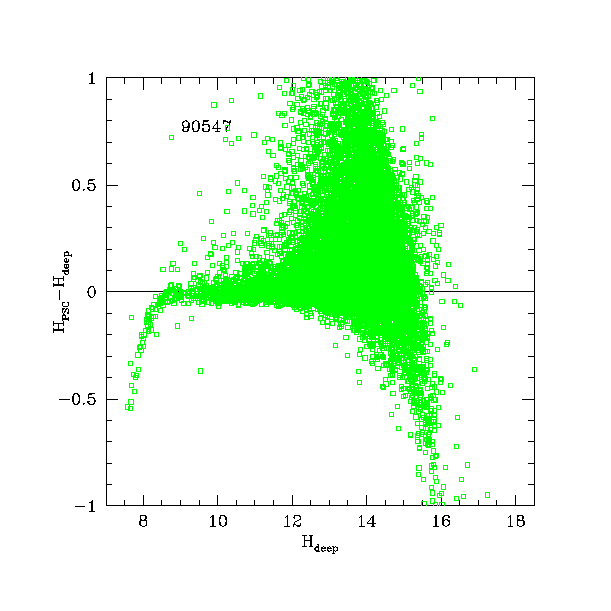

Figure 6 - J-band residuals (PSC-deep) Combination Calibration Scan J-magnitude. Figure 7 - H-band residuals (PSC-deep) Combination Calibration Scan H-magnitude. Figure 8 - K_s-band residuals (PSC-deep) Combination Calibration Scan K_s-magnitude.

Extracted Source Position Residuals With Respect to the 2MASS PSC

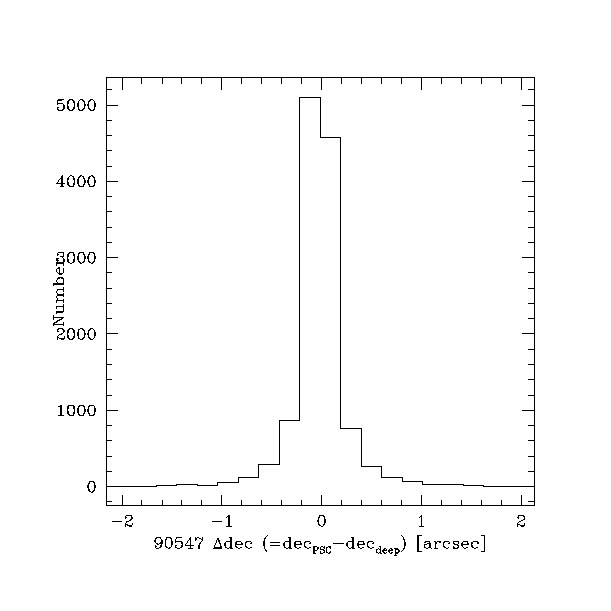

Figure 9 - Declination residuals (PSC-deep) plotted versus declination. Figure 10 - Declination residuals (PSC-deep) plotted versus Right Ascension. Figure 11 - Histogram of Declination residual (PSC-deep).

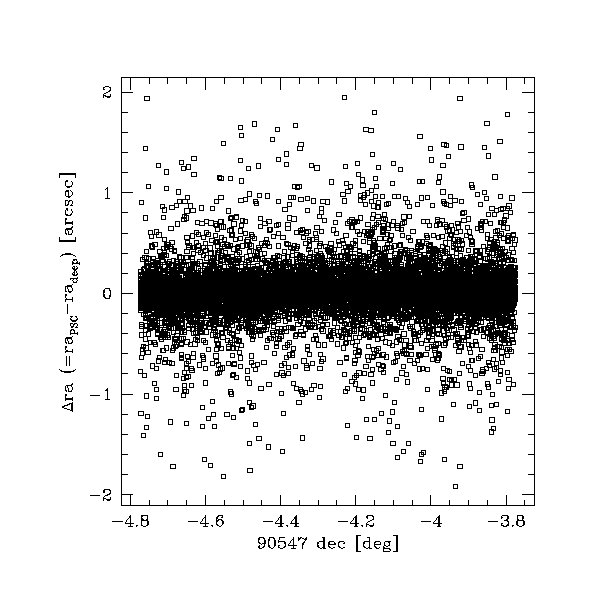

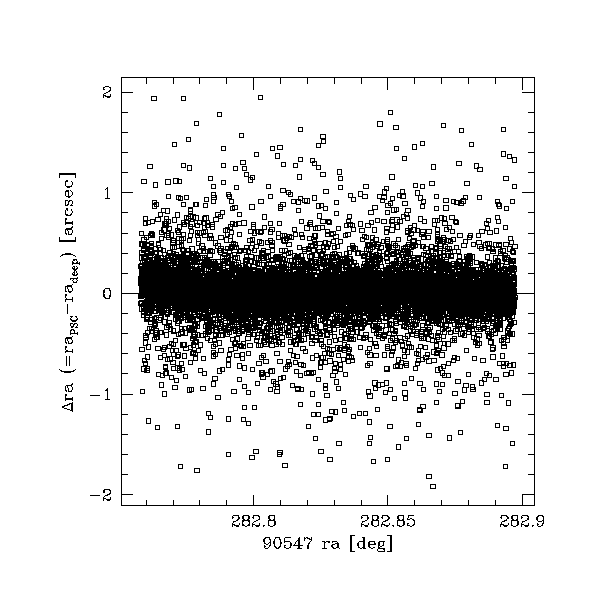

Figure 12 - Right Ascension residuals (PSC-deep) plotted versus Right Ascension. Figure 13 - Right Ascension residuals (PSC-deep) plotted versus Declination. Figure 14 - Histogram of Right Ascension residuals (PSC-deep).

[Last Updated: 2006 May 17; by R. Cutri]
