Appendix 7. Combined Calibration Scan Images and Source Lists


5. General Properties of the Combined Calibration Field Data

90290 Field

Tile Number (click for preview image)90290
Central R.A. Dec (J2000; deg) 352.64369 +38.31591
Central glon glat (deg) 105.94466 -21.87369
Corners of source extraction area (R.A./Dec. pairs - J2000 deg) 352.553649 37.817298, 352.553649 38.814313,
352.731599 37.817298, 352.731599 38.814313
Number Northgoing Scans Combined (J/H/Ks)564/564/567
Number Southgoing Scans Combined (J/H/Ks)565/565/568
Number of Extractions (includes artifacts) 4471

Retrieve Images and Source List for this Field

Extracted Source Counts and Statistics

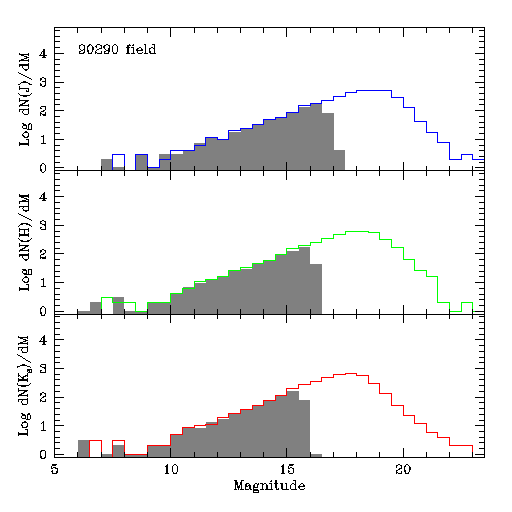

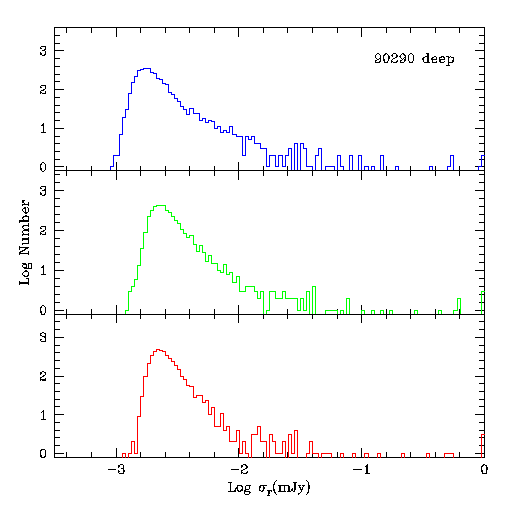

Figure 1 - Differential counts vs. magnitude for J (top), H (center), and Ks (bottom) bands. 2MASS All-Sky PSC source counts in the same approximate area are shown in the shaded region. Figure 2 - Photometric uncertainties plotted versus magnitude for J (top), H (center), and Ks (bottom) bands. Figure 3 - Log 1-sigma noise (mJy) histograms for J (top), H (center), and Ks (bottom) bands.

Photometric Properties
Figure 4 - Color-magnitude diagram. Figure 5 - Color-color diagram.

Extracted Source Photometric Residuals With Respect to the 2MASS PSC

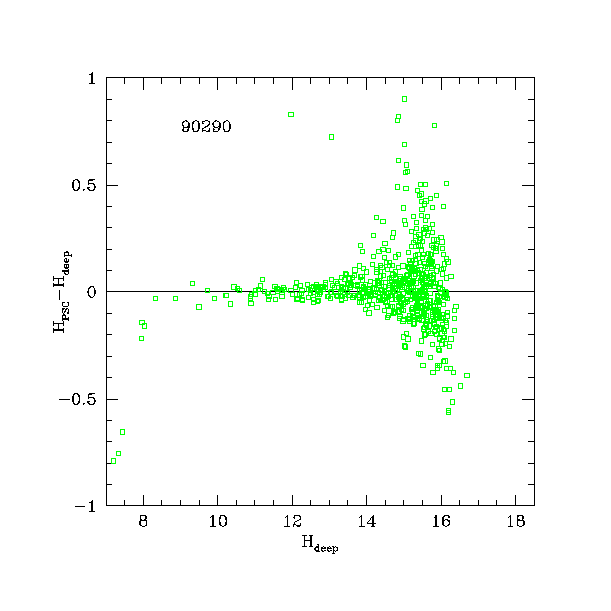

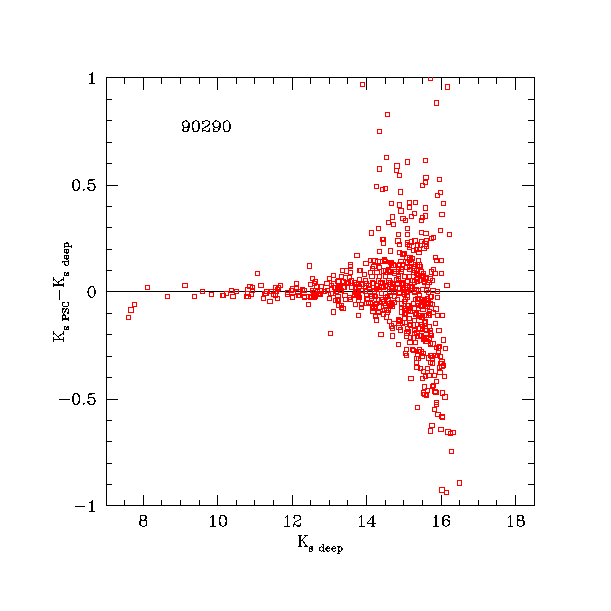

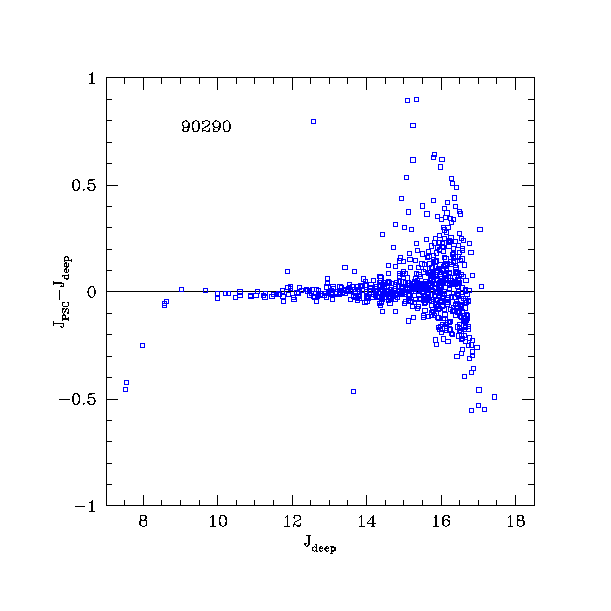

Figure 6 - J-band residuals (PSC-deep) Combination Calibration Scan J-magnitude. Figure 7 - H-band residuals (PSC-deep) Combination Calibration Scan H-magnitude. Figure 8 - Ks-band residuals (PSC-deep) Combination Calibration Scan Ks-magnitude.

Extracted Source Position Residuals With Respect to the 2MASS PSC

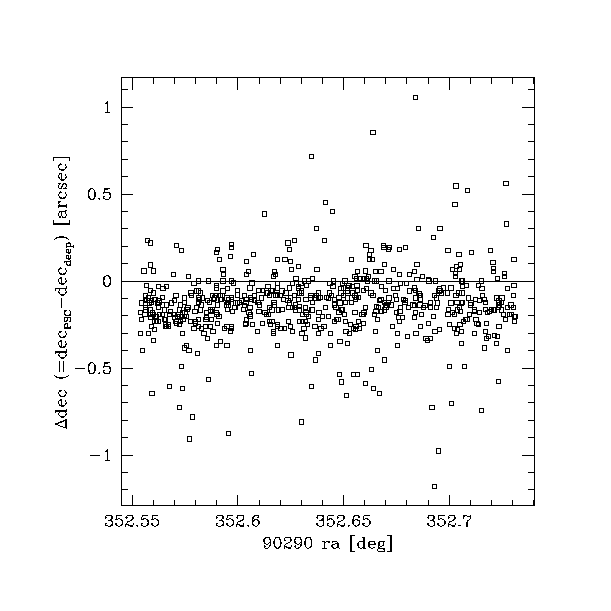

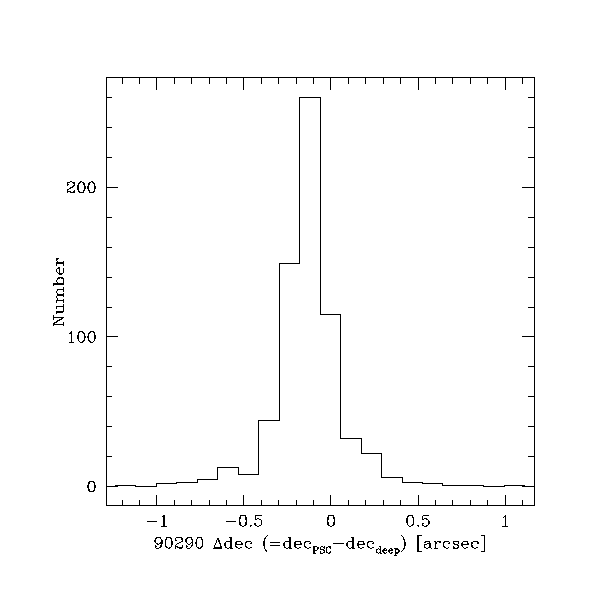

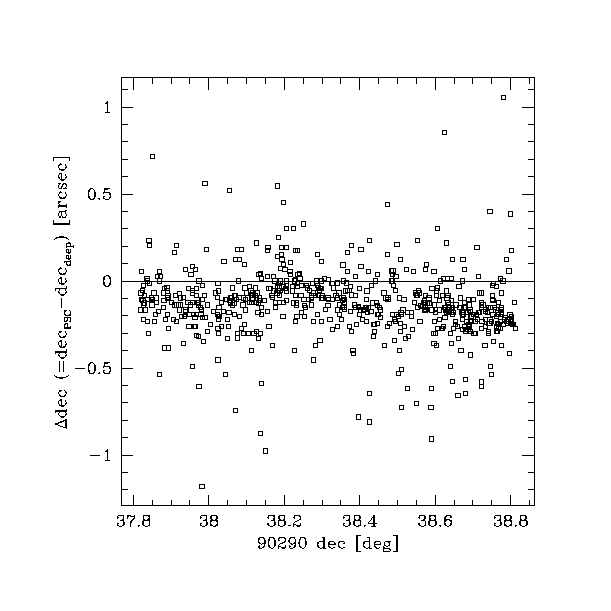

Figure 9 - Declination residuals (PSC-deep) plotted versus declination. Figure 10 - Declination residuals (PSC-deep) plotted versus Right Ascension. Figure 11 - Histogram of Declination residual (PSC-deep).

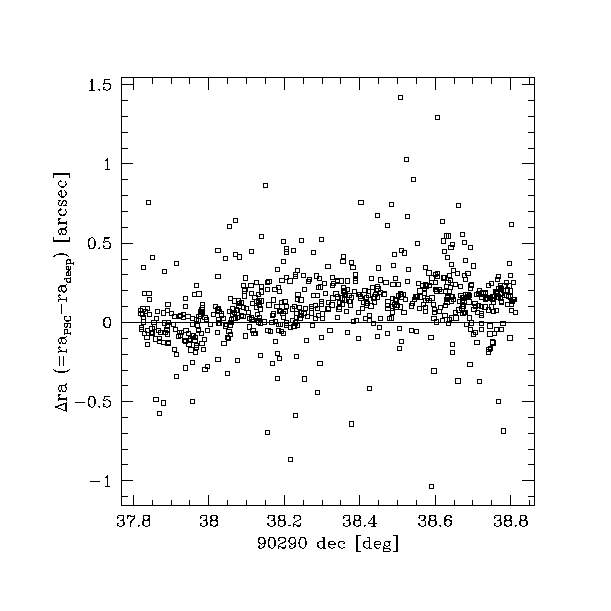

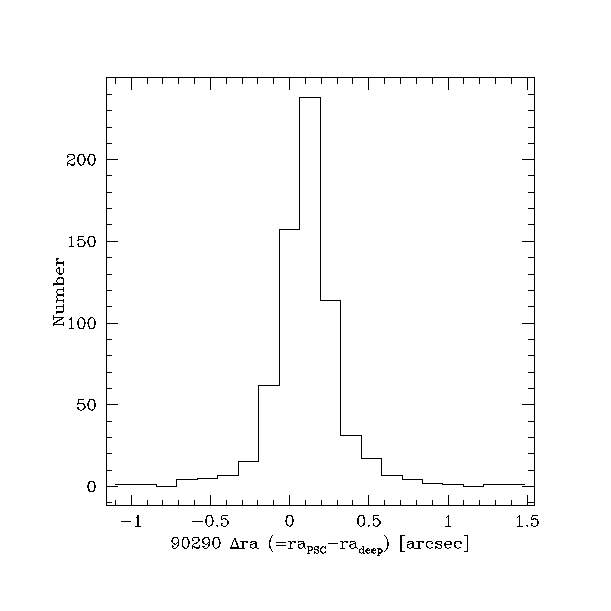

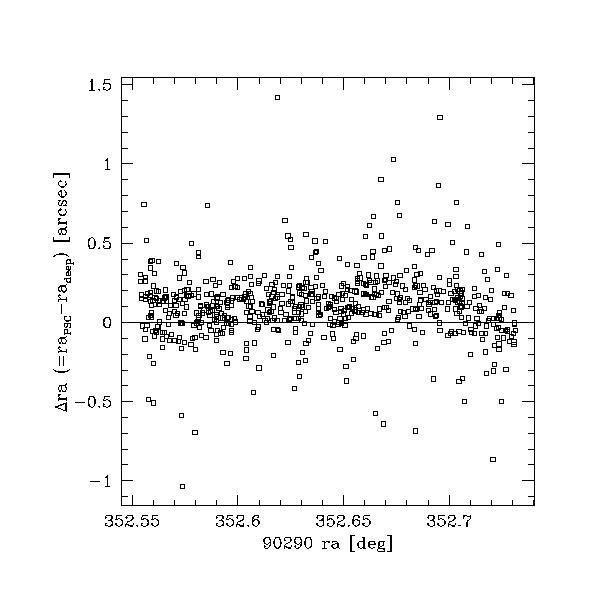

Figure 12 - Right Ascension residuals (PSC-deep) plotted versus Right Ascension. Figure 13 - Right Ascension residuals (PSC-deep) plotted versus Declination. Figure 14 - Histogram of Right Ascension residuals (PSC-deep).

[Last Updated: 2006 May 17; by R. Cutri]
