2MASS Atlas Image Gallery: Planetary Nebulae


Ring Nebula The planetary nebula, Messier 57 (the "Ring Nebula"). The red color in the outer regions of the nebulae arises from emission by atomic and molecular hydrogen in the 2 micron wavelength band. Notice that the central star is very faint in this image, due to its intrinsically blue color and high temperature. (Field size 9.5´ × 7.9´. Image size 233 kB.)


Dumbbell Nebula Atlas Image mosaic of Messier 27 (M27), the Dumbbell Nebula (also known as NGC 6853). This famous large planetary nebula glows ghostly red through this crowded star field. Its distance from us is not well known, but is likely between 150 pc (490 light years) and 1100 pc (3500 light years). The main body of the nebula covers about 6´, but the nebula's fainter halo covers about 15´. Optically, the Dumbbell is one of the brightest planetary nebulae. Its appearance and brightness in the 2MASS near-infrared image is significantly different than in the optical. The red color seen in the 2MASS image is due to excited molecular hydrogen, H2 (Zuckerman & Gatley 1988, ApJ, 324, 501), which emits strongly at 2.12 µm in the 2MASS Ks band. Planetary nebulae are formed as low-mass stars, like our Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. Image mosaic by S. Van Dyk (IPAC). (Field size 11.0´ × 11.0´. Image size 498 Kb.)


NGC 40 Atlas Image, covering 5.0´ × 5.0´ on the sky, of the planetary nebula (PN) NGC 40 (HD 826). This image, as well as previous near-infrared images by Latter et al. (1995, ApJS, 100, 159), show an elliptical-shaped shell highlighted by the bright east and west lobes. NGC 40's morphology is consistent with models of "barrel"-shaped PNe (Mellema 1995, MNRAS, 277, 173). Hora, Latter, & Deutsch (1999, ApJS, 124, 195) point out that material has broken through and expanded beyond the shell, forming faint filaments of gas. They detect weak 2.2 µm molecular hydrogen (H2) emission and tentatively conclude that the emission is shock-excited. PNe are formed as stars like our Sun lose their outer envelopes to the interstellar medium at the end of their lives. Hora et al. conclude that H2 emission is not directly tied to a PN's morphology, but that bipolar morphology is intimately related to the mass of the progenitor star. It remains a mystery why relatively high-mass, high mass-loss-rate asymptotic giant branch progenitors shed material in an axisymmetric fashion. The bright source within the bright nebula is the hot central star of the PN, originally the core of the dying star, which will eventually become a white dwarf and cool off over billions of years. (A portion of the diffraction spike of the brightest member of the nearby multiple star system BD+71 8 [SAO 4061] can faintly be seen to the north of the PN.) (Field size 5.0´ × 5.0´. Image size 122 kb.)


Messier 76 Atlas Image mosaic of the planetary nebula Messier 76 (M76), aka NGC 650/651, and the Little Dumbbell, or Cork, Nebula. The nebula has a striking bipolar appearance, although it is faint and diffuse in the 2MASS image. Planetary nebulae are formed as low-mass stars, like our Sun, and stars somewhat more massive, reach the end of their lives and lose their outer envelopes to the interstellar medium. Abundances of chemical elements in the nebula indicate that the dying star may have been at the upper mass range of those stars which end as planetaries. The central star, which is seen faintly near the center of the nebula, is quite hot and was originally the core of the dying star. It will eventually become a white dwarf and cool off over billions of years. Image mosaic by S. Van Dyk (IPAC). (Field size 6.0´ × 6.0´. Image size 182 kb.)


NGC 1501 Atlas Image mosaic of the little-studied planetary nebula NGC 1501, which is at roughly a distance of 1.3 kpc (4238 light years) from us. The pinkish-purplish nebula surrounds a very hot central star, which has a temperature of nearly 90,000 K. The morphology of the nebula appears to be affected by the vigorous wind from the star (Sabbadin et al. 2000, A&A, 361, 1112). Planetary nebulae are formed as stars, like our Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. The hot central star, originally the core of the dying star, which will eventually become a white dwarf and cool off over billions of years. (Field size 5.0´ × 5.0´. Image size 136 kb.)


NGC 1514 The planetary nebula NGC 1514. (Field size 5.5´ × 5.5´. Image size 160 kb.)

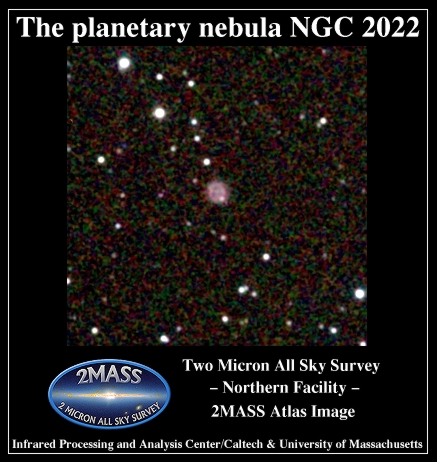

NGC 2022 Atlas Image of NGC 2022, a planetary nebula having a small ring-like, or elliptical, appearance. This nebula was previously imaged in the near-infrared by Latter et al. (1995, ApJS, 100, 159). From infrared spectra Hora, Latter, & Deutsch (1999, ApJS, 124, 195) find that the light from NGC 2022 is dominated by emission lines of neutral hydrogen. Planetary nebulae are formed as stars, like our Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. The hot central star (which can be faintly seen in the 2MASS image toward the center of the reddish ring), originally the core of the dying star, which will eventually become a white dwarf and cool off over billions of years. (Field size 5´ × 5´. Image size 137 kb.)


NGC 2346 The bipolar planetary nebula NGC 2346 (Field size 9.5´ × 10.3´. Image size 438 kb.)


NGC 2371 The planetary nebula NGC 2371 (Field size 5.0´ × 5.0´. Image size 145 kb.)


NGC 2392 Atlas Image of NGC 2392. This is a planetary nebula, showing a double ring structure. Planetary nebulae are formed as low-mass stars, like the Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. From an analysis of the nebula's kinematics, O'Dell, Weiner, & Chu (1990, ApJ, 362, 226) proposed a model where the observer is looking into a bipolar stellar wind flow from the hot central star (seen in the image brightly at the nebula's center). The star first lost mass during the extended red giant envelope stage from the equator of the precursor star, forming the outer disk, or ring, ~5300 yr ago; the inner disk, or ring, with an age of ~1000 yr, represents a more recent, strong, ongoing wind. The central star will eventually evolve to a white dwarf, as the nebular gas dissipates. Latter et al. (1995, ApJS, 100, 159) previously imaged NGC 2392 in the near-infrared; in the case of this nebula, the near-IR emission is dominated by reradiated light from the central star by nebular dust likely formed during the precursor star's asymptotic giant branch phase. These data are part of the Spring 1999 data release. (Field size 5.4´ × 5.4´. Image size 145 kb.)


NGC 3132 Atlas Image mosaic of the planetary nebula NGC 3132, known to amateur astronomers as the "Eight-Burst" or "Southern Ring" Nebula. The nebula was spectacularly imaged in the optical in a number of bands by the Hubble Space Telescope. The large wind-blown cavity in the nebula is also obvious in the near-infrared 2MASS image, as is much of the filamentary structure and extended emission. In the near-infrared most of the emission from NGC 3132 appears in the Ks (2.17 µm) band, giving the planetary nebula the reddish color in the image. Planetary nebulae are formed as low-mass stars, like our Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. The bright source within the nebula is the hot central star, originally the core of the dying star, which will eventually become a white dwarf and cool off over billions of years. Image mosaic by S. Van Dyk (IPAC). (Field size 5.0´ × 5.0´. Image size 120 kb.)


NGC 3242 Atlas Image of the planetary nebula NGC 3242. This nebula has an elliptical shape and several interesting structural features, including the inner bright elliptical ring, the two extensions to the ring, or ansae, that are placed roughly along the major axis of the elliptical emission, and the larger faint halo that envelops the inner structure (Hora, Latter, & Deutsch 1999, ApJS, 124, 195). The bright ring is pure continuum emission, while the faint halo is (dust) scattered light. Planetary nebulae are formed as low-mass stars, like our Sun, reach the end of their lives and lose their outer envelopes (for this nebula, what are now the ring and halo structures) to the interstellar medium. The bright source within the bright elliptical ring is the hot central star of the planetary nebula, originally the core of the dying star, which will eventually become a white dwarf and cool off over billions of years. These data are included in the Second Incremental Release! (Field size 5.0´ × 5.0´. Image size 130 kb.)


NGC 6369 Atlas Image mosaic of the planetary nebula NGC 6369. The nebula, noted for its peculiar fishtail-like outer loop morphology in the light of optical emission lines (also seen faintly in this near-infrared image, outside the bright ring of the nebula). This planetary nebula is associated with fast low-ionization emission regions, or FLIERs, which are thought to be discrete, collimated, and highly supersonic ejection events from the very hot central star (Hajian 1997, ApJ, 487, 304), which can be seen at the center of the ring. Planetary nebulae are formed as low-mass stars, like our Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. The pinkish color in the bright ring of the nebula may arise from emission by atomic and molecular hydrogen primarily in the 2.17 µm wavelength (Ks) band, or dust scattering in a combination of all three bands. These data are included in the Second Incremental Release! (Field size 5.0´ × 5.0´. Image size 120 kb.)


NGC 6781 Atlas Image mosaic of the planetary nebula NGC 6781. Planetary nebulae (PNe) are formed as low-mass stars, like the Sun, reach the end of their lives and lose their outer envelopes to the interstellar medium. NGC 6781 has a very similar "ring-like" morphology to the famous PN, the Ring Nebula (M57). The red glow of NGC 6781's ring in the near-infrared is due to 2.12 µm emission from molecular hydrogen (H2), which is strong in the 2MASS Ks band. Although the main ring is quite bright, the fainter H2 filaments within and halo emission outside of the bright ring, as studied by Kastner et al. (1994, ApJ, 421, 600), can just barely be seen in the 2MASS image. Kastner et al. postulate that if all PNe showing axial symmetry, and therefore, possessing bipolar structure, are H2-bright, as first found by Zuckerman & Gatley (1988, ApJ, 324, 501), then ring-like PNe, like NGC 6781, with strong shocked H2 emission may be bipolar nebulae viewed with an inclined polar axis with respect to the plane of the sky. The bright ring is the equatorial torus, from a high-density slow wind from the evolving star, whereas the fainter halo structures are the polar lobes and the remnants of a faster, low-density wind. For NGC 6781 the lobe geometry may be a bipolar cylinder with half the radius of and within the bright torus. Near-infrared observations, such as those by 2MASS, provide very important information about PNe and the evolution of stars like our Sun. (Field size 6.0´ × 6.0´. Image size 176 kb.)


NGC 6818 The planetary nebula NGC 6818. (Field size 4.5´ × 4.5´. Image size 106 kb.)

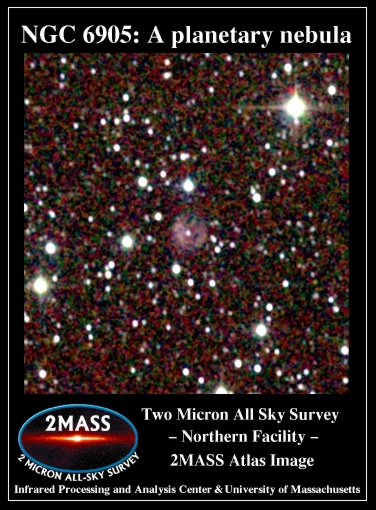

NGC 6905 The planetary nebula NGC 6905. This planetary nebula belongs to the small group of very high excitation objects, with Teff > 100000 K (Feibelman 1996, ApJ, 472, 294). The near-IR emission seen in this image is likely from molecular hydrogen. The central star is also visible, as it is in the optical images in Balick (1987, AJ, 94, 671). (This composite image was made early in the survey, when focus was not yet quite optimal.) (Field size 5.4´ × 5.7´. Image size 165 kb.)


Butterfly Nebula Atlas Image of the Butterfly Nebula. The Butterfly, also known as M 2-9 and IRAS 17028-1004, is thought to be a young planetary nebula, which is the final stage of evolution for stars similar to our Sun. It has a distinctly bipolar structure, evident in the 2MASS image, with a bright central star. (The red "star" directly to the south of the nebula's central star is a known persistence artifact of the infrared-bright star; diffraction spike artifacts are also seen emanating from the bright star.) The star has an optical spectrum of late O- or early B-type, hot enough to ionize the gas in the two bipolar lobes, but it is clear from the star's high brightness in the Ks band that we are more likely seeing emission from a region of concentrated light scattering to the infrared, directly around the star. Within the lobes are a number of knots. The knots emit strongly in the [Fe II] lines, indicating high temperature shocks; in the lobes light is also primarily emitted by hydrogen recombination and continuum light scattering from the central star (Hora & Latter 1994, ApJ, 437, 281). The outer shell structure of the lobes is a well-defined photodissociation region, as H2 is radiatively excited and emits light at 2-2.5 µm. Studying fainter more extended lobes in the optical, Schwarz et al. (1997, A&A, 319, 267) find a distance of ~650 pc and a dynamical age for the nebula of ~1200 yr; they also argue that the central source is a hot, compact possible binary star system. The Hubble Space Telescope has also obtained an interesting view of this nebula. (Field size 4.0´ × 4.0´. Image size 96 kb.)


IC 418 The planetary nebula IC 418. (Field size 5.0´ × 5.0´. Image size 129 kb.)
