Wavelength Accuracy of the LWS

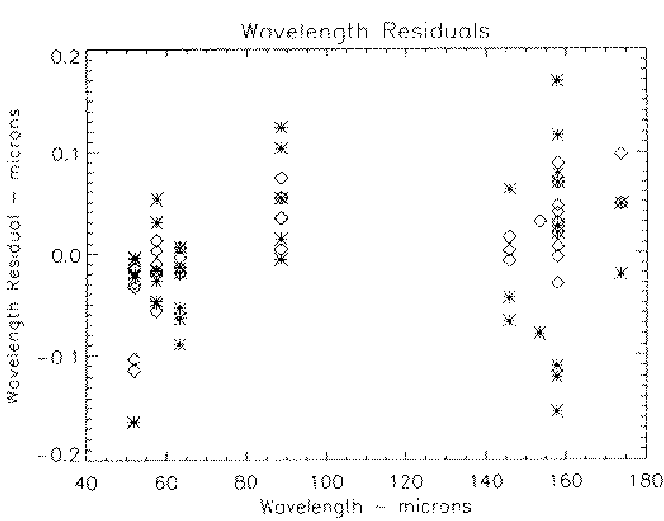

The following plot shows residuals to the grating wavelength fits. Note, an error of 0.03um at 50um is 180 km/s and 0.1 um at 200 um is 150 km/s. The Fabry Perot wavelength calibration is thought to have similar uncertainties relative to its resolution.

---

Last update: August 1998

Steve Lord -- lord@heaven.ipac.caltech.edu
